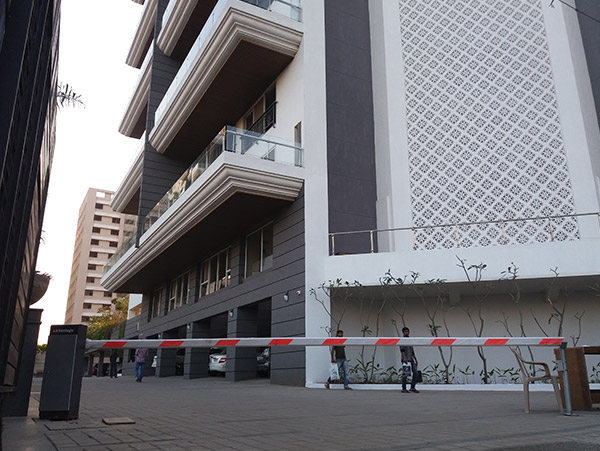

Automation Systems : Boom Barrier

• Ultra Slim contemporary design
• Heavy duty construction
• Motorized Mechanism
• Microprocessor based control
• Weather proof body
• Complete with hand crank for manual operation
• 100% Duty cycle

• Power Supply : AC220±10%V 50Hz
• Boom Length : Upto 4 mtrs
• Boom Opening Time : 2-3 sec
• Boom Closing Time : 0.9 sec
• Running Noise : < 60 dB
• Control Panel : Inbuilt in the steel cabinet
• Type of lock on cabinet : Mechanical closing/opening

• Manual maneuver : Spring/lever/shaft
• Duty Cycle : 1 million operations
• Max torque : 600Nm
• Boom Bar : Rectangular boom with protective rubber profile
• Opening and closing operation : Wireless remote and push button
• Max. Torque : 250 mm

• Actuator Weight : 55 Kgs
• Construction Material : Cast Aluminium and Steel made cabinet
• Operating temperature : -15°- 60°
• Protection Grade : IP 55 weather resistant
• Dimensions : 325(W) * 107 (D)* 975(H) mm
